Hey there! As a supplier of Hydraulic Hook Lift Trucks, I've seen my fair share of issues with these bad boys. They're super useful for all sorts of jobs, like waste management and construction material hauling. But like any piece of machinery, they can run into problems. In this blog, I'll share some tips on how to troubleshoot a Hydraulic Hook Lift Truck.
1. Check the Hydraulic System
The hydraulic system is the heart of a Hook Lift Truck. If it's not working right, the whole truck can be out of commission.
Low Hydraulic Fluid
One of the most common problems is low hydraulic fluid. You can easily check the fluid level through the sight glass on the hydraulic reservoir. If it's low, add the recommended hydraulic fluid. Make sure to use the right type; using the wrong fluid can cause all sorts of issues, like reduced performance or even damage to the system.
Leaks
Leaks are another big issue. Look for signs of hydraulic fluid on the ground under the truck or around the hydraulic hoses and cylinders. If you find a leak, it could be due to a damaged hose, a loose fitting, or a worn - out seal. For small leaks, tightening the fittings might do the trick. But if it's a damaged hose or seal, you'll need to replace it. You can find replacement parts at most heavy - equipment supply stores or order them directly from the manufacturer.
Faulty Hydraulic Pump
If the hydraulic system is making strange noises or the lifting action is slow or jerky, the hydraulic pump might be the culprit. The pump is responsible for generating the pressure needed to operate the hook lift. A faulty pump can be caused by worn - out parts, clogging, or overheating. You might need to take it to a professional mechanic to diagnose and repair the pump. They can use special tools to test the pump's performance and determine if it needs to be repaired or replaced.
2. Inspect the Hook and Lift Mechanism
The hook and lift mechanism is what allows the truck to pick up and drop off containers.
Hook Misalignment
The hook should align properly with the container's lifting points. If it's misaligned, the truck won't be able to pick up the container correctly. Check if the hook is bent or if there are any obstructions around it. Sometimes, debris or dirt can get stuck in the hook, preventing it from engaging properly. Clean the hook and make sure it moves freely. If the hook is bent, it might need to be repaired or replaced.
Worn - Out Hook Teeth
The teeth on the hook are what grip the container. Over time, these teeth can wear down, reducing the hook's ability to hold the container securely. Inspect the hook teeth regularly. If they're worn beyond a certain point, replace them. You can check out 6*4 DRIVE 20 CBM HOOK ARM GARBAGE TRUCK for more details on hook design and replacement parts.
Lift Cylinder Issues
The lift cylinders are responsible for raising and lowering the hook. Check if the cylinders are extending and retracting smoothly. If there's a problem, it could be due to a bent rod, a damaged seal, or a problem with the hydraulic flow to the cylinders. As with the hydraulic system, leaks around the cylinders should be addressed immediately.
3. Electrical System Checks
The electrical system controls many functions of the Hook Lift Truck, including the operation of the hydraulic valves and lights.
Dead Battery
A dead battery can prevent the truck from starting or operating the hook lift. Check the battery terminals for corrosion. Corroded terminals can prevent the battery from charging properly. Clean the terminals with a wire brush and apply a terminal protector to prevent future corrosion. If the battery is old and won't hold a charge, it's time to replace it.
Faulty Wiring
Inspect the wiring harness for any signs of damage, such as frayed wires or loose connections. A damaged wire can cause intermittent electrical problems or prevent certain functions from working. You can use a multimeter to test the continuity of the wires. If you find a damaged wire, splice in a new section or replace the entire harness if necessary.
Malfunctioning Switches
The switches that control the hook lift operation can also malfunction. If a switch isn't working, it could be due to a broken contact or a problem with the internal mechanism. Try cleaning the switch contacts with electrical contact cleaner. If that doesn't work, replace the switch.
4. Tire and Suspension Checks
Don't forget about the tires and suspension. They play a crucial role in the overall performance and safety of the truck.
Low Tire Pressure
Check the tire pressure regularly using a tire pressure gauge. Low tire pressure can cause uneven tire wear, reduced fuel efficiency, and poor handling. Make sure to inflate the tires to the recommended pressure, which can usually be found on a sticker inside the driver's door or in the owner's manual.
Worn - Out Tires
Inspect the tires for signs of wear, such as bald spots or uneven tread. Worn - out tires can be dangerous, especially when carrying heavy loads. Replace the tires if the tread depth is below the legal limit.
Suspension Problems
A worn - out suspension can cause a rough ride and affect the truck's stability. Look for signs of leaking shock absorbers or damaged springs. If you notice excessive bouncing or a sagging front or rear end, have the suspension system checked by a professional.
5. Braking System Checks
The braking system is essential for safety.
Brake Pad Wear
Check the brake pads regularly. You can usually see the brake pads through the wheels. If they're thin, it's time to replace them. Worn - out brake pads can reduce braking performance and increase the stopping distance.
Brake Fluid Level
Like the hydraulic fluid, the brake fluid level should be checked regularly. Low brake fluid can indicate a leak in the braking system. If the level is low, add the appropriate brake fluid. But if you have to keep adding fluid, there's probably a leak that needs to be fixed.
When to Call a Professional
Sometimes, troubleshooting on your own isn't enough. If you're not comfortable working on the truck or if you can't figure out the problem, it's best to call a professional mechanic. They have the expertise and tools to diagnose and repair complex issues.

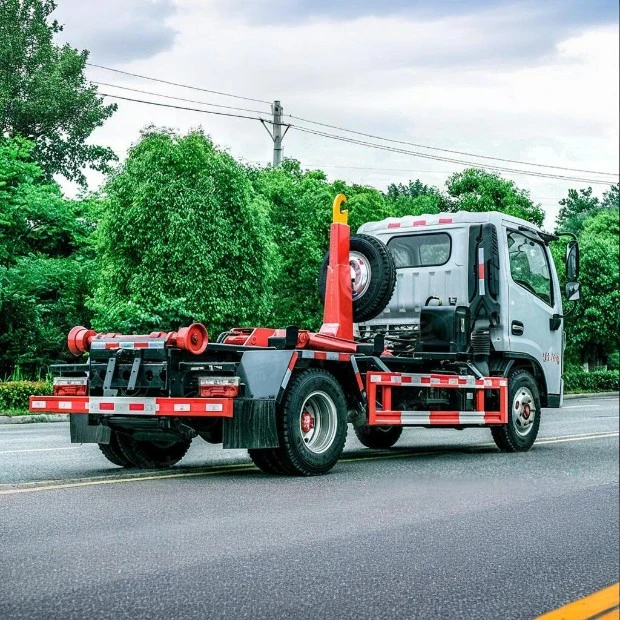

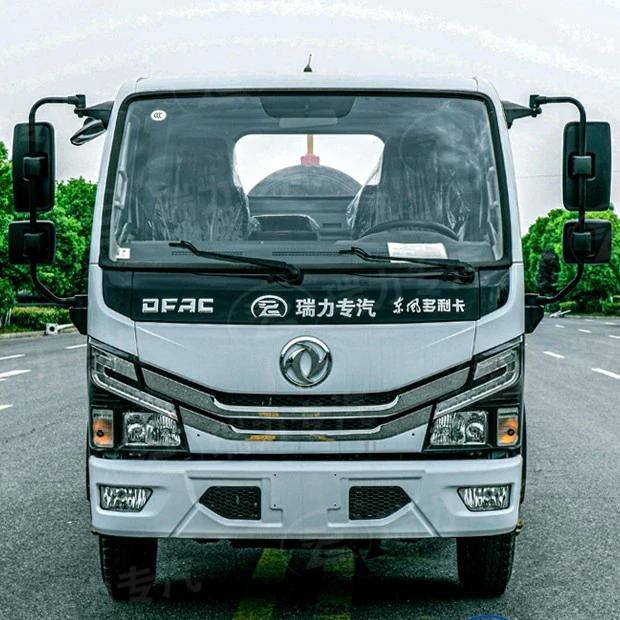

If you're in the market for a new Hydraulic Hook Lift Truck or need replacement parts, we've got a great selection. Check out our 6X4 Dongfeng FAW Foton 10 Wheels Heavy - duty 20 CBM Hook Lift Waste Truck and Dongfeng 4x2 6cbm Detachable Container Type Garbage Truck. We're here to help you with all your Hook Lift Truck needs. Whether you're a waste management company or a construction firm, we can provide the right truck for your requirements. If you're interested in learning more or discussing a purchase, don't hesitate to reach out. We're ready to start a conversation about how we can meet your specific needs.
References
- "Heavy - Duty Truck Maintenance Manual"
- Manufacturer's Manuals for Hydraulic Hook Lift Trucks
