Products Description
The wrecker vehicle mainly consists of a chassis, lifting device, towing and lifting device, hydraulic system, electronic control system, vehicle body, and toolbox. It has multiple functions including lifting, pulling, and towing, and is suitable for clearing obstacles on highways and urban roads. Since breakdowns and accidents are inevitable when vehicles are on the road, especially on high-grade highways, this phenomenon occurs frequently. The task of a road clearing vehicle is to promptly remove broken-down or accident-damaged vehicles from the scene to ensure unobstructed traffic. Therefore, road clearing vehicles are also called road rescue vehicles. With the increase in high-grade roads and vehicles in use, road clearing vehicles have also developed.
Chassis configuration: JAC A8, all-diesel 162 horsepower, 3600 wheelbase, Wanliyang eighth gear high Low-speed gearbox with torque up to 460, double-decker 180 girder, 6.5-ton rear axle, 700 tires, 850 large open gear frame, integrated electrically heated rearview mirror, double top storage box, 4/7+6 reinforcement plate Springs with exhaust brakes.
Upper structure configuration: Heavy-duty 6-bed trailer, 14mm steel plate frame (sunken frame), 5mm thick checkered plate (runway perforated), 5.8m long, 2.55m wide, with hydraulic tilting at the rear, flatbed grid support, extended triangular support, 108mm outer diameter main cylinder, 95mm lifting cylinder, 10mm thick slide rail (reinforced front end of slide rail), double sub-beams, 4-ton rear tow arm, 4-ton winch, rear tow arm with main beam, one pair of L-shaped tire holders, LED work lights, 2 tire baffles, 2 auxiliary trolleys, 4 tie-down straps, one toolbox, and other standard equipment. (High-sided cargo bed and flatbed remote control are optional).

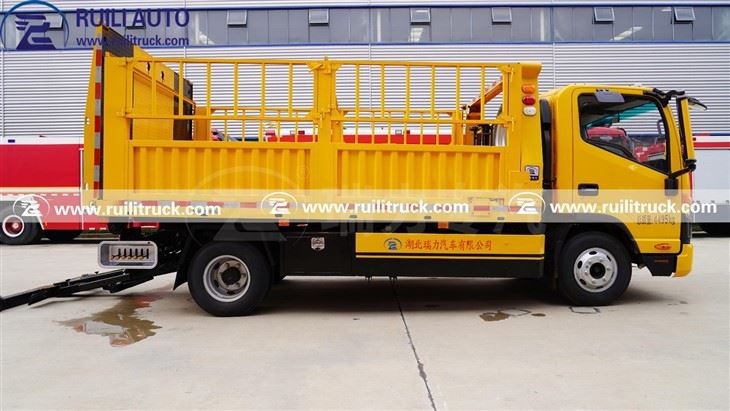

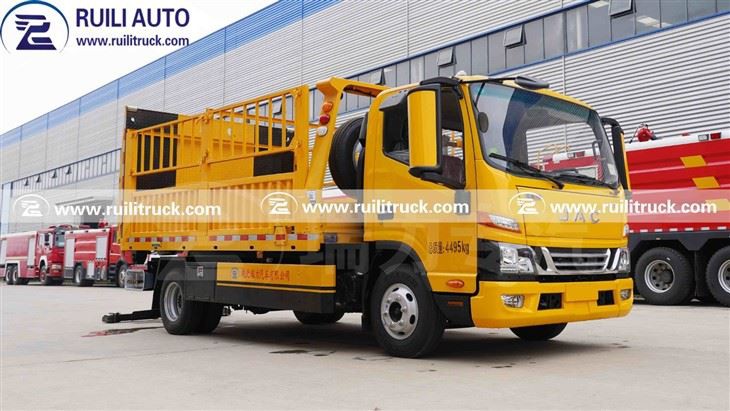

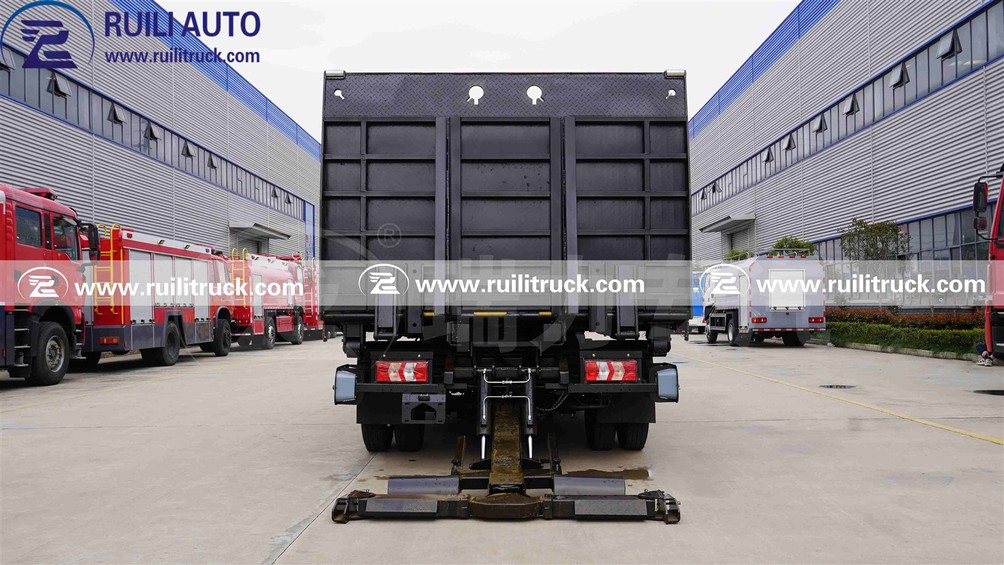

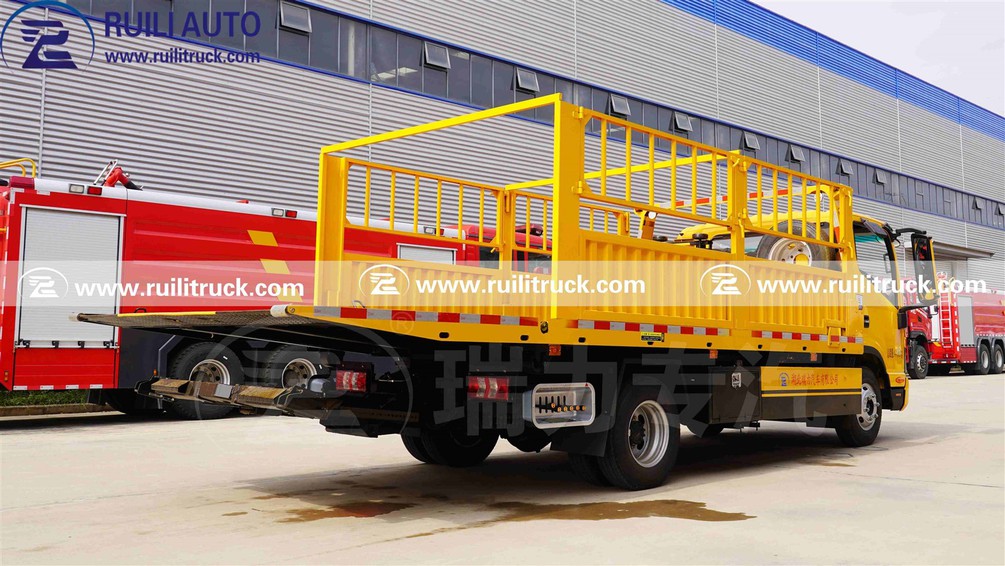

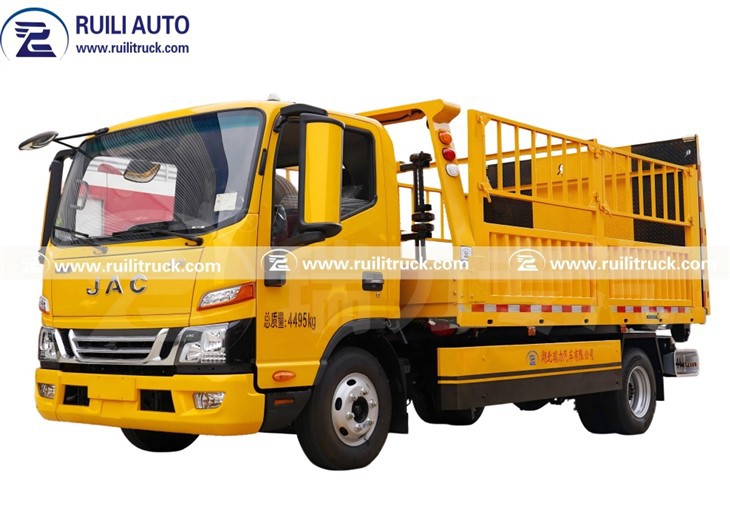

Detailed Photos
Main Parameters
| Overall dimensions |
5995×2300×2400 mm
|
| Model No. |
RLQ5045TQZPH6
|
| Wheelbase |
3600 mm
|
| Loading weight | 6T |
| Horsepower | 162 hp |
| Tire |
7.00R16
|
| GVW |
4495 kg
|
| Curb weight |
2800 kg
|
workshop View
Company Profile
Hubei Ruili Automobile Co., Ltd. is located in the New Industrial Base Ruili Emergency Industrial Park of Zengdu District, Suizhou City, Hubei Province, known as the capital of China's special-purpose vehicles, the hometown of Emperor Yan and Shennong, and the hometown of ancient bell music.
We has always adhered to the development philosophy of "survival through quality," continuously innovating and building a strong and lean technical team. It has established a young and professional sales team and set up a one-stop service chain covering pre-sales, sales, and after-sales. Actively expanding domestic and international markets, the company provides customized, diversified, and intelligent production services. Its products are popular across the country and exported to multiple countries and regions, including South America, Southeast Asia, the Middle East, Central Asia, and Africa. In recent years, the company has continuously innovated its development mechanisms, increased investment in product research and development, and recruited high-end talent to enhance its independent innovation capabilities. It has gradually established a complete technical and product R&D system and a quality assurance management system with its own distinctive features. Leveraging its reputation for quality and brand influence, the company has steadily increased its market share and customer satisfaction, becoming a shining star of good fortune in China's specialized vehicle industry.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days depends on chassis lead time and upper body solution details.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. Cooperation method and standards need to be negoiated in details.
Q: If I have chassis in local, can I request for only upper body solution?
A: Absolutely! We offer upper body solution.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, depends on payment terms etc.).
Q: How do I place an order?
A: Contact us via this page/for a quote, confirm oem demands such as model type, chassis brand, wheel base and horse power demands, upper body arrangement or dimension, the more information you provide, the better we will proceed the project.
