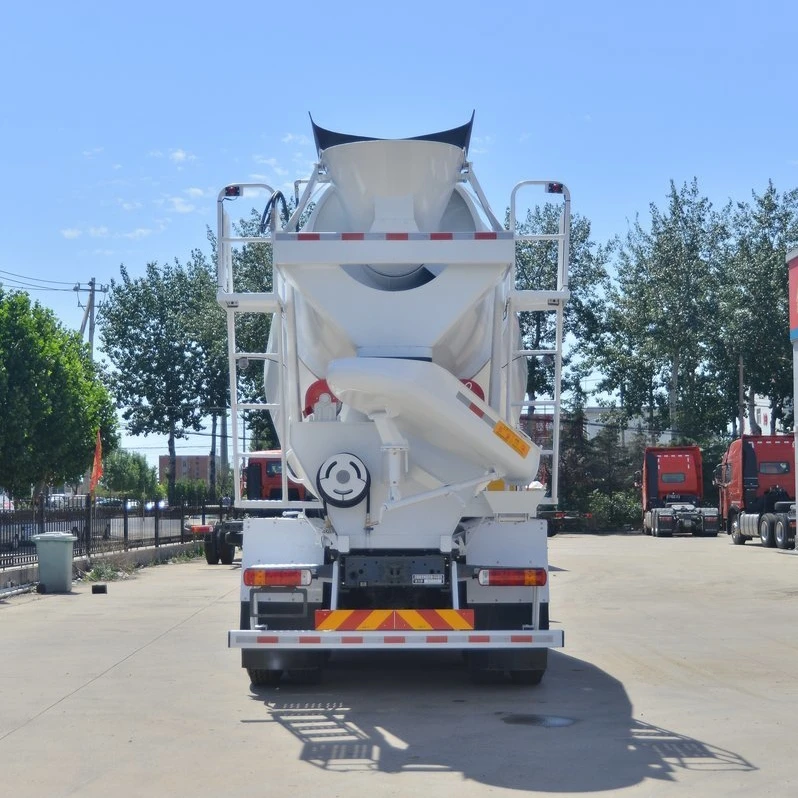

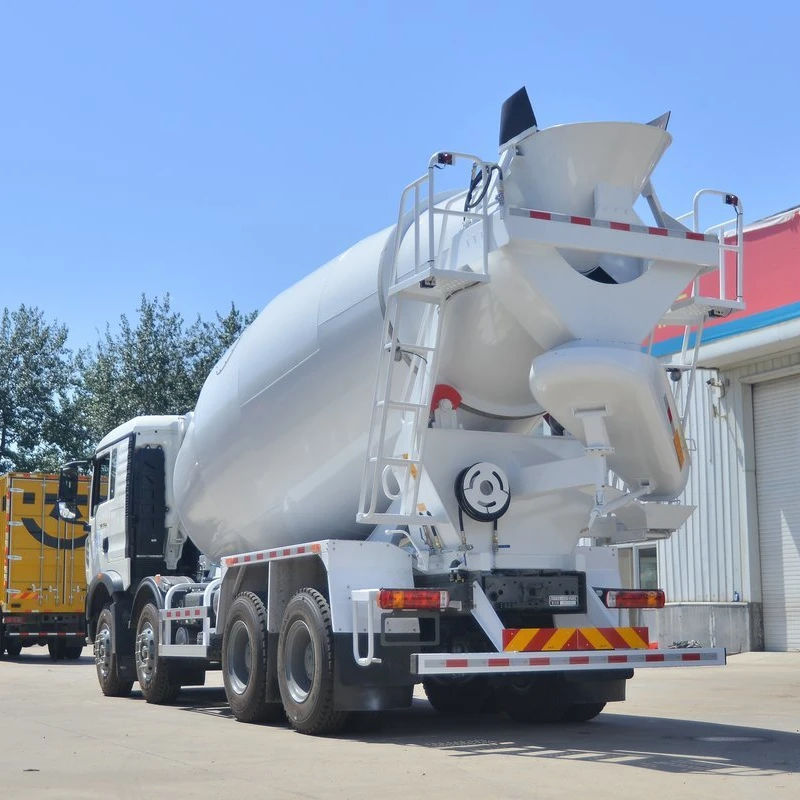

Howo 6x4 Concrete Mixer Truck is a special truck used to carry concrete for construction; The capacity is 12 cubic meters. Because of its shape, it is often called a snail truck or just Mixer. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.
During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported to the destination, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from
taking up space.
Howo 371 Concrete Truck is constructed with high-tensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps. With a good perfomance in Middle Asia and Africa Market.
The sub-frame adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal
braces to greatly increase the service life of the frame.
|
Whole Vehicle Performance & Parameters |
Chassis |
HOWO |
|
Curb Weight (Kg) |
10460 |
|
|
Total Vehicle Weight (Kg) |
25100 |
|
|
Outline Dimension(L*B*H) (mm) |
9040×2496×3850(mm) |
|
|
Vehicle Configuration |
Clutch |
Dry Single Disc Clutch (φ430) |
|
Gear Box |
RW19710 |
|
|
Driving Type |
6*4 |
|
|
Steering Mechanism |
ZE8118 |
|
|
Front Axle |
HF9 Drum |
|
|
Rear Axle |
HC16 |
|
|
Service Brake |
Dual-circuit Air Brake |
|
|
Parking Braking |
Spring-powered Air-cut-off Brake |
|
|
Auxiliary Brake |
Engine Exhaust Brake |
|
|
Tyre |
12.00R20 |
|
|
Engine Parameters |
Model |
WD615.47 |
|
Type |
In-line 6-cylinder, Water-cooled, Supercharged, |
|
|
Emission Standard |
Euro II |
|
|
Displacement |
9.726(L) |
|
|
Max Power (KW) |
371 HP(2200rpm) |
|
|
Drum capacity |
12cbm |
