Products Description
Core Advantages
Strong Power: 440HP engine with 8×4 heavy-duty chassis, strong climbing ability, suitable for complex road conditions
High Efficiency & Flexibility: Knuckle boom crane occupies small space, large working radius, obvious advantage in narrow space, 360° full rotation without dead angle
Safe & Reliable: Full hydraulic outriggers + moment limiter + multiple safety protections to ensure safe lifting operation
Multi-function in One: Integrates transportation, lifting and tipper functions, greatly improving operation efficiency and reducing operating costs
Export Customization: Left/right-hand drive, emission, voltage, crane tonnage, cargo box structure can be customized according to target market
Quality Assurance: Strictly implement ISO9001 quality system, provide complete export certification (COC, CE, etc.)
Optional Configuration
Crane tonnage: 12T/16T/20T/25T knuckle boom / straight boom optional
Cab: High roof sleeper, airbag seat, parking air conditioner
Cargo box: Extended/heightened box, stake box, tipper box
Additional device: Hydraulic winch, tool kit, wireless remote control, rear ladder
Export customization: Right-hand drive modification, emission certification for different countries, overseas after-sales support.

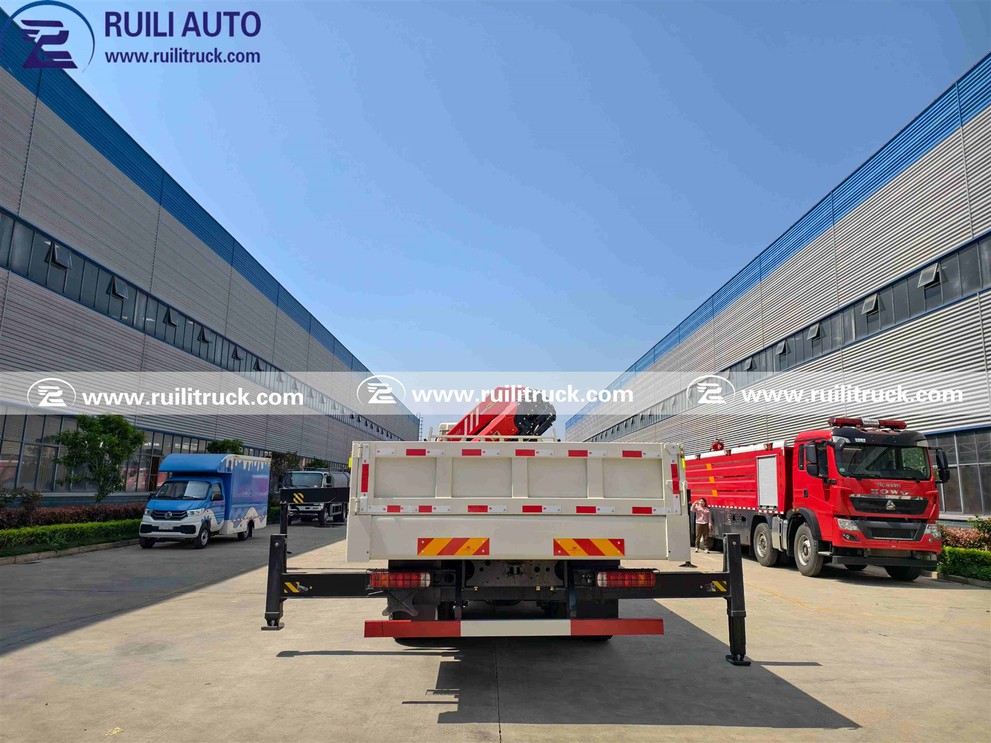

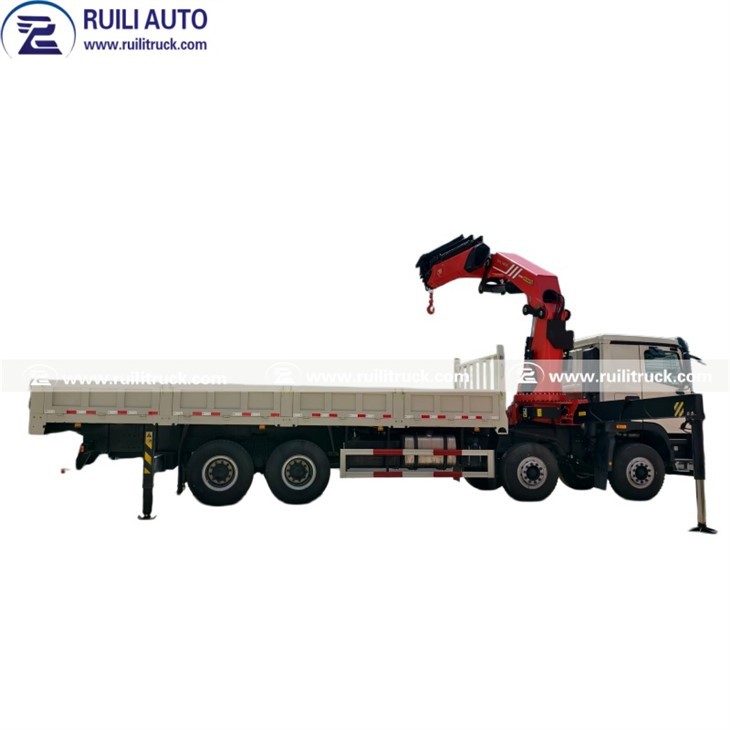

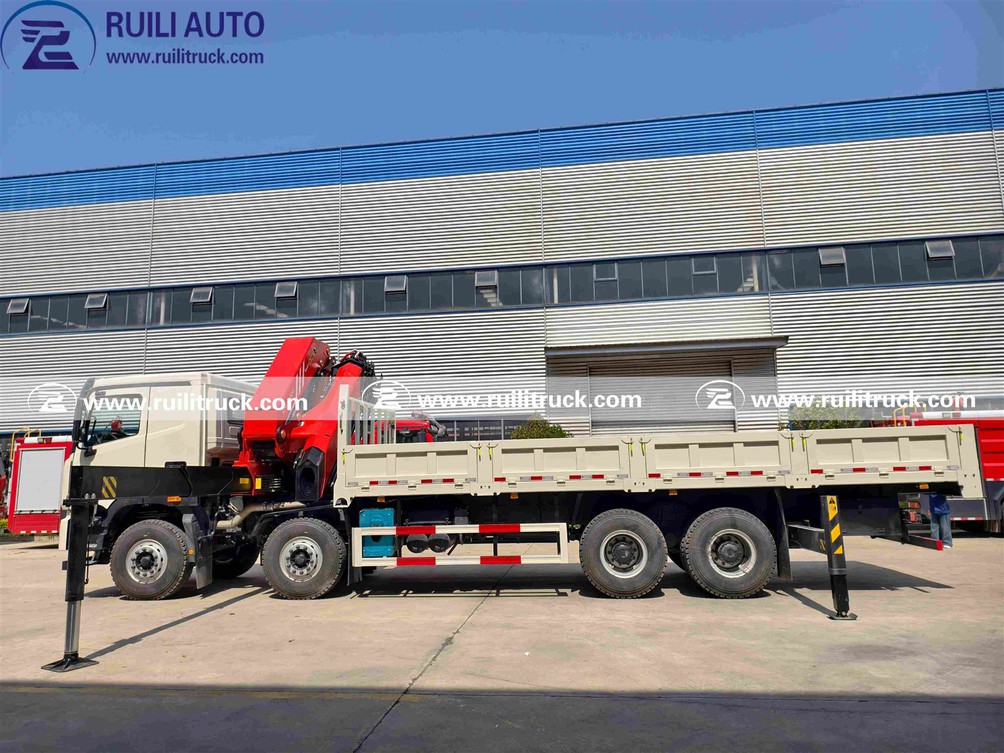

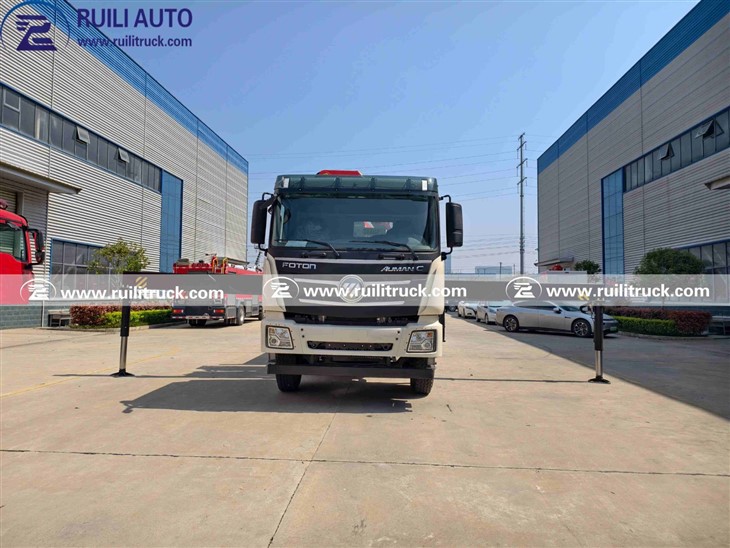

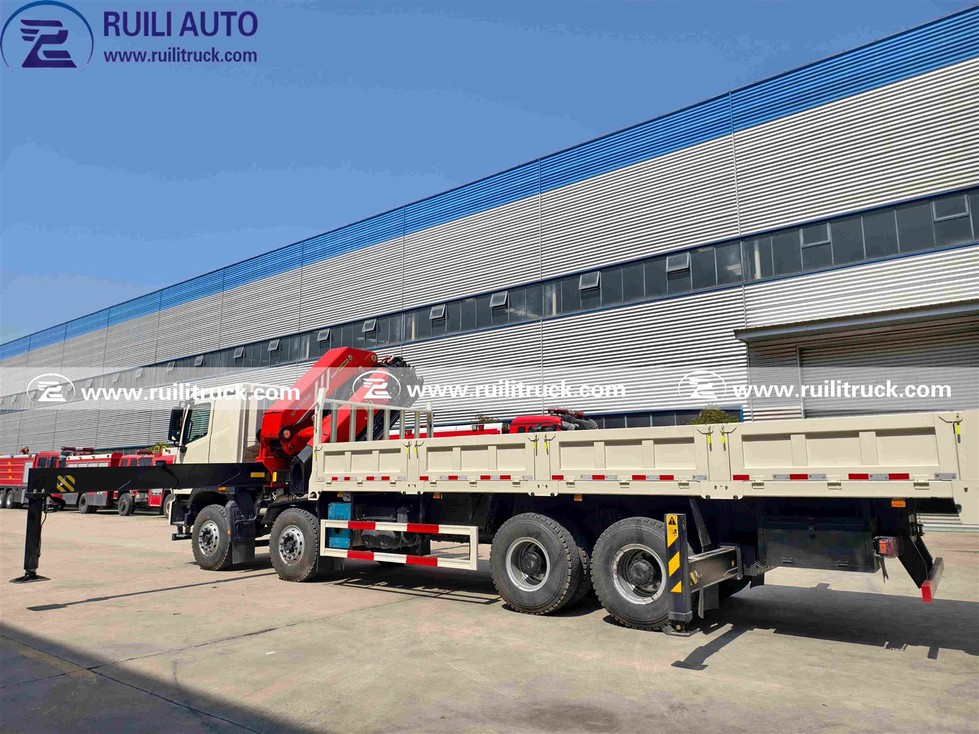

Detailed Photos
Main Parameters
| Overall dimension | 12000×2550×3980 mm |
| Curb weight | 28,500 kg |
| Rated load capacity | 2500 kg |
| Approach/Departure Angle | 20° / 12° |
| Boom sections | 5-section folding boom (telescopic with load) |
| Max lifting height | 22 m |
| Max lifting moment | 600kN·m |
| Engine Model | Cummins (440hp) |
| Gearbox | Fast 12-speed manual gearbox (12JS200T), with PTO |
| Origin | Suizhou, China |
a powerful force in modern logistics and engineering construction
Please feel free to contact us if you are interested.
Tel: +86 15827523184
Company Profile
HUBEI RUILI AUTOMOBILE Co., Ltd is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, wreckers, refrigerated trucks, road sweepers, fire trucks, and garbage trucks. The company possesses fully functional and well-equipped manufacturing workshops, spraying and electrophoresis facilities, powder coating workshops, and testing centers. With advanced production equipment, mature manufacturing processes, and an excellent technical team, we are a diversified automotive company integrating automotive technology research and development, vehicle manufacturing and modification, parts production, and sales. Ruili has obtained 14 utility model patents, 1 design patent, and 2 invention patents. We have perfect order processing flow and after-sales service. We provide both online and offline technical guidance and training. We can customize bodywork and develop new products according to customer needs.
Since its establishment in 2011, Hubei Ruili Automobile Co., Ltd. has been dedicated to innovation and manufacturing in the field of special-purpose vehicles. It is a modern enterprise that integrates automotive R&D, manufacturing and modification, as well as parts production and sales.
We cover an area of 240,000 square meters, with more than 300 employees, including a professional R&D team of over 80 members and a sales team of more than 100 members. After more than two decades of development, Ruili has built a comprehensive one-stop industrial chain that integrates R&D, production, sales, and service. Our factory is equipped with advanced production facilities such as CNC machining centers, fiber laser cutting machines, CNC plasma cutting machines, Suizhou's first electrophoretic coating line for special vehicle parts production, and electrostatic powder coating lines. Over the years, Ruili Special Vehicle has obtained more than 30 enterprise qualifications and patent certificates, including the Safety Production Standardization Certificate, Contract Creditworthiness Certificate, Quality Management System Certification, and After-sales Service Certification.
Our brand "RLQ" series of special-purpose vehicles includes:
Smart Sanitation Series: covering more than ten new energy models such as water trucks, garbage compactor trucks, road sweepers, hook-lift garbage trucks, and sewage suction & jetting trucks.
Emergency Support & Rescue Series: including power supply trucks, maintenance trucks, mobile kitchen trucks, ambulances, aerial work trucks, tow trucks, and fire trucks.
Refrigerated & Van Series: including new energy refrigerated trucks, livestock transport trucks, and medical waste transfer vehicles.
Mining Trucks Series: New energy mining trucks, available in 8-ton, 25-ton, and 35-ton models.
We have established more than 20 offices across China and multiple overseas sales centers, forming a global sales network. Our products are exported to more than 50 countries and regions, including Southeast Asia, the Middle East, Central Asia, Africa and the Americas. As an important participant in the Belt and Road Initiative, Ruili exports over 1,500 vehicles annually. Hubei Ruili Automobile Co., Ltd. actively participates in international special vehicle exhibitions, strengthening technical exchanges with global partners and continuously enhancing its international brand influence. We always adhere to innovation as the driving force and quality as the foundation for development, committed to providing high-quality special vehicle solutions for customers worldwide. We sincerely welcome domestic and overseas clients to visit us for inspection, cooperation, and mutual success!
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days depends on chassis lead time and upper body solution details.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. Cooperation method and standards need to be negoiated in details.
Q: If i have chassis in local, can I request for only upper body solution?
A: Absolutely! We offer upper body solution.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, depends on payment terms etc.).
Q: How do I place an order?
A: Contact us via this page/for a quote, confirm oem demands such as model type, chassis brand, wheel base and horse power demands, upper body arrangement or dimension, the more information you provide, the better we will proceed the project.
For more information, please feel free to contact us!
